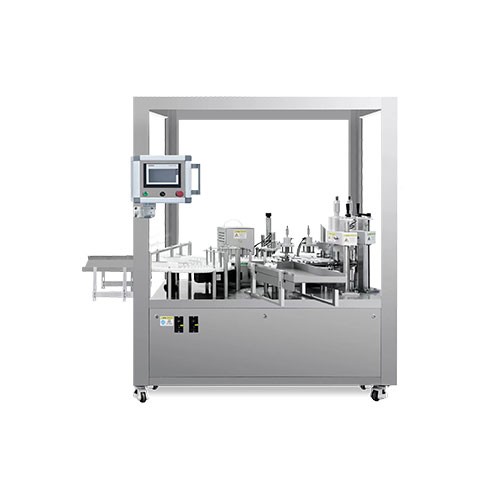

Filling and Capping Machines for E-Liquid

This Automatic filling capping machine is specially made for all high and low viscosity materials, such as E-liquid,peanut butter,tomato sauce, soy
sauce, medical alcohol, honey, juice ,oil, milk, etc. The machine adopts volumetric piston pump for filling materials. Controlled
by servo motor . adjusting the filling weight by touch screen, it can fill from 10ml-1000ml with quick speed and high precision.

FEATURES

1.This machine adopts PLC, touch screen control panel, it is convenient to adjust.

2.Each filling head can be regulated and micro adjusted.

3.Photoelectric sensors, proximity switches, etc. are used in advanced sensing elements, so that no bucket, no filling, if barrel

blocking, the machine will automatically stop and alarm.

4.If filled material is very foamy, the filling way can be diving style, and it is effectively reduce the generation of foam, can

meet the different characteristics of the filling material.

5.The whole machine gets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling

products are made of high quality stainless steel 316, the machine frame is made of SS304, the thinkness of stainless steel is

not less than 2mm.

6.The whole machine is safe, environmental, sanitary. It can adapt to various kinds of working places.

PRODUCT PARAMENTERS

Filling and Capping Machines for E-Liquid
Drive Type	Ceramic Piston Pumps
Material	Stainless Steel 316
Filling Head	2/4/6/8
Filling Capacity	10-150ml(Adjustable)
Filling Precision	1%
Filling speed	50-60BPM
Power supply	120W
