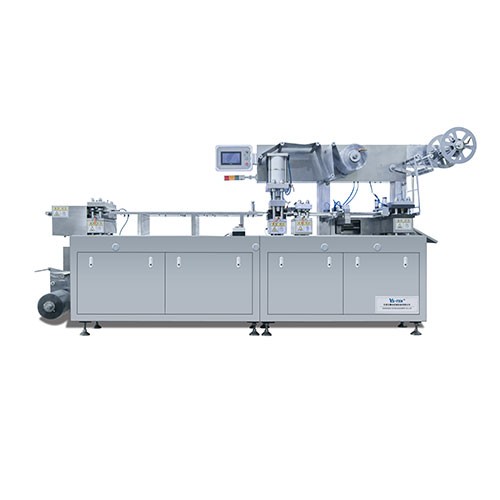

Blister packing machine
Blister packaging machine is suitable for various specifications of capsules, plain tablets, sugar-coated tablets, large honeydew tablets, injections, ampoules, etc. It is a blister-type sealing packaging equipment for medical equipment such as surgical instruments, medical instruments, and various electronic and hardware products. The machine can automatically realize more than ten functions such as PVC feeding, PVC heating, PVC forming, medicine cutting, PTP feeding, PVC and PTP sealing, batch number printing, tearing line, punching medicine plate output, display, etc. It is an integrated packaging machinery that gives items a long shelf life, good sealing performance, beautiful sections, safety and hygiene, and improves product grades.
FEATURES
1. Input the plate length through the user interface to enable adjustable stroke settings, ensuring precise positioning in the mold alignment groove for easy mold changes, accurate photoelectric plate matching, and encoder-driven positive pressure foam formation.
2. The system features a user-friendly interface, PLC programmable control, and variable frequency for seamless speed adjustment.
3. The automatic blanking function allows for the design of various molds and blanking mechanisms tailored to user specifications.
4. Options include tangent indentation, batch number printing, and a waste recycling system.
5. The machine utilizes servo motor drive for enhanced stability.
6. When the cylinder heat sealing process is halted, the heat sealing mold will automatically disengage, preventing package damage and extending the machine's lifespan.
PRODUCT PARAMENTERS
YS-LS260 Blister Packing machine | |
| Model | YS-LS260 |
| Packing Material | PVC/PET (0.15-0.5)*500mm Paper cardboard 200gsm-700gsm 200*260mm |
| Compressed air | 0.5-0.6mpa consumption≥0.5m |
| Electricity Power | 380V 50HZ |
| Power supply | Max 14KW |
| Mood cooling water | Tap water or circulation water energy consuption 50L/H |
| Cutting frequency | 10-20times/min |
| Adjustable travel range | 50-220mm |
| Max size of cardboard | 260*300mm |
| Machine dimensions | 3700*650*1750mm |
| N.W | 2500KG |
