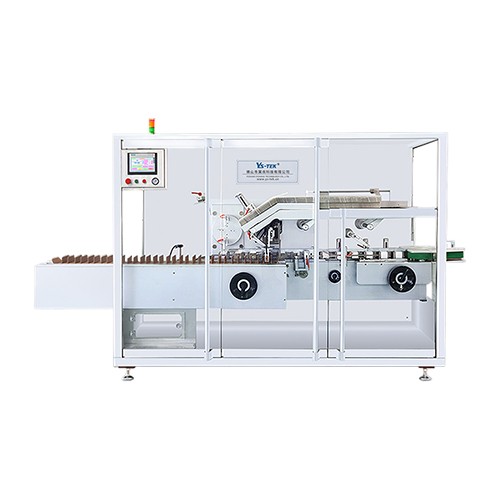

YS-150 Cartoner machine

YS-150 Automatic Cartoning Machine is designed for various applications including food, pharmaceuticals, cosmetics, and consumer goods. It operates in continuous motion utilizing a servo system, achieving a maximum speed of up to 100 cartons per minute. This machine can automatically open boxes, load products inside, and then seal the boxes using either tuck-in closures or hot-melt glue. It can be integrated with Pillow Packaging Machines, blister packaging machines, bagging machines, Shrink-Wrappers, and more, creating a fully automated packaging line. The equipment features components from globally recognized brands.

FEATURES

The automatic cartoning machine is an innovative product designed for efficiency. This multifunctional device integrates electrical and gas components, for a wide range of applications. It efficiently packs products into designated cartons and seals them before dispatch. This machine is ideal for packaging in the pharmaceutical, food, cosmetics, and other related sectors. It can operate independently or be integrated with other machinery.

Particularly suited for pharmaceutical packaging, it works seamlessly with aluminum-aluminum, aluminum-plastic, and aluminum-aluminum-plastic blister packaging machines, delivering optimal results. It complies with the "Good Manufacturing Practices" (GMP) outlined in the national drug production quality control standards.

This advanced multifunctional machine boasts the following features:

Well-designed structure, smooth operation, and low noise levels;
High-quality packaging with an attractive finish;
Versatile adaptability for different products, easy installation, and adjustment;
User-friendly interface for straightforward operation, reliability, and stability;
Comprehensive inspection system and safety measures to ensure secure operation and packaging integrity.
Automated Carton Formation: The machine automatically forms cartons from flat blanks, ensuring consistent and precise carton shapes for optimal product protection.
High-Speed Operation: Designed for efficiency, the Cartoning Machine operates at high speeds, significantly increasing production output and meeting the demands of high-volume packaging environments.

TECHNICAL PARAMETER

YS-150 CARTONING MACHINE
Item	Parameter
Packing speed	30-80 boxes/min
Carton Quality requirements	250-350 g/m2
Size range	(70-180)mm×(35-90)mm×(15-75)mm
work pressure	≥0.6 mpa
Air consumption	120-160 L/min
Power supply	220V 60HZ
Main motor power	0.75 Kw
Dimensions (L×W×H)	3217mm×1210mm×1768mm
Net weight of the whole machine	About 2000 Kg
