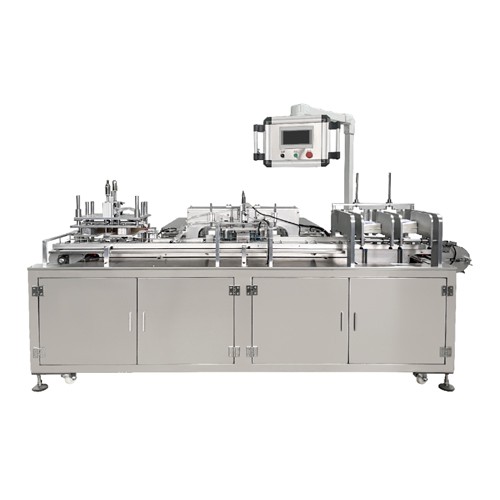

Horizontal Premade Bagging Machine

FEATURES

It is apply for heat sealable pre-made pouch packing and sealing. Such as flat pouch.Vacuum Premade Pouch Packaging Machines fill, vacuum, and seal premade pouches in one automatic process.  This machine can fill and seal stand-up Doypacks, flatpacks or four-side sealed bags with or without zippers etc.

Reliable Performance & Wide Applicability

• Operates smoothly and continuously, adapting to diverse product types including medical, hygiene, food, and industrial goods.

• Ensures consistent output with zero frayed edges and minimized downtime due to fault-tolerant design.

  Fully Automated Operation

• Integrated photoelectric alignment system guarantees precise bag positioning and error-free packaging.

• Configurable feeders support multiple product types, enhancing flexibility for varied production needs.

  Advanced Control & Precision

• Powered by Panasonic PLC (Japan import) and servo motors for unmatched accuracy, stability, and speed adjustments.

• Smart PLC touchscreen interface allows real-time customization of temperature, speed, and packaging parameters based on material thickness and product dimensions.

  Enhanced Sealing Technology

• Intermittent sealing mechanism ensures leak-proof, aesthetically clean finishes for superior product presentation.

• Intelligent PLC temperature control maintains optimal heat levels, preventing material damage.

  Automatic alarm system for material shortages and auto-stacking capabilities streamline workflow.

• Customizable & Efficient

• Rapid product specification switching eliminates downtime during batch changes.

• Supports automatic counting, portioning, and stacking to meet high-volume demands.

•


TECHNICAL PARAMETERS

Packing bag type：Stand-up bags, four-side-seal bags, three-side-seal bags, paper bags, shaped bags and other composite bags；

Packaging film material：composite film, aluminized film, polyethylene/polypropylene and other composite materials；

Bagging Method：Straight Push Clip Push；

Packing bag size：W:50-150mm,L<200mm；

Packing weight：5-200g；

Packing speed：55-65pcs/min；

Voltage：220V 50HZ；

Main power supply：4.5KW；

Compressed air：0.6-0.8Mpa,≥0.7 m3/min；

Machine weight：900Kg；

Machine Size：2900(L)×2470(W)× 1728(H)mm；
