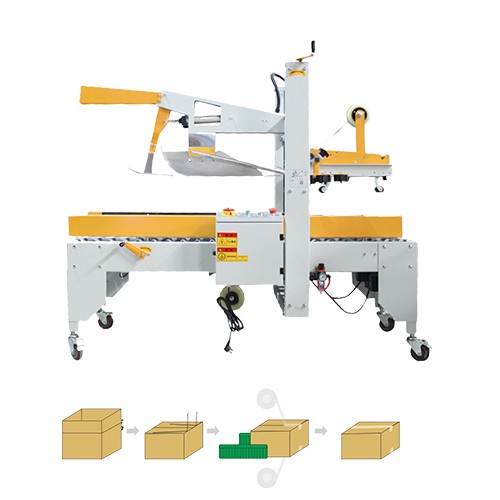

Automatic Carton Sealer Machine

This heavy-duty automatic carton sealer machine efficiently handles carton dimensions ranging from L200-600×W150-500×H150-500mm (7.87-23.62×5.9-19.69×5.9-19.69 inches), making it ideal for diverse packaging needs. Equipped with dual 2"/3" (50/75mm) tape dispenser heads, the machine features automatic top flap closure technology that ensures perfect carton sealing alignment before tape application.

FEATURES:

Dual-Side Drive System: Automatically closes all four top flaps simultaneously

Ergonomic Adjustments: Easy handle controls for width/height customization (150-500mm range)

Industrial-Grade Construction: Reinforced steel frame ensures reliable performance for continuous 24/7 operation

Multi-Industry Compatibility: Perfect for sealing boxes in appliances, textiles, food & beverage, pharmaceuticals, cosmetics, and chemical industries

Flexible Integration: Works as standalone equipment or seamlessly integrates with automatic carton erector systems

The machine's intelligent design combines precision engineering with robust materials, delivering 30% faster sealing speeds compared to conventional models. Its IP54-rated components ensure dust-resistant operation for demanding production environments.

TECHNICAL PARAMETER

Model：YS-FX-3

Sealing Capacity：≥10boxes/min

Table height：min:600mm  max:720mm adjustable

Air pressure：0.4-0.6Mpa

Suitable tape：W48～60～75mm*L1000 code

Supply Voltage：220V/ 50HZ/200W

Overall Dimension：L1780xW900xH1500mm

Weight：180Kg
